UNIMET® 300ST
The test system for electric beds and electrical equipment in compliance with accident prevention regulations.
Intelligent and practice-oriented
- Safe tests of electrical equipment, hospital and healthcare beds as well as medical electrical equipment without patient connections.
- 4-Key operation
- Easy-to-use
- Standard-based classification help
The test system for electric beds and electrical equipment in compliance with accident prevention regulations.
Intelligent and practice-oriented
- Safe tests of electrical equipment, hospital and healthcare beds as well as medical electrical equipment without patient connections.
- 4-Key operation
- Easy-to-use
- Standard-based classification help
Features
- Easy and safe to operate
- Automatic and manual test sequence
- Data input via keyboard or barcode scanner
- Visual inspection, functional test and electrical tests
- Memory for 600 data records
- UNIData 300 – for data exchange and storage
- Compatible with common application programs z. B. visual FM, MT Data and Fundamed
Interfaces
- RS-232 connection
- PS/2-port for scanner and keyboard
- Centronic connection for the printer
Standard Accessories

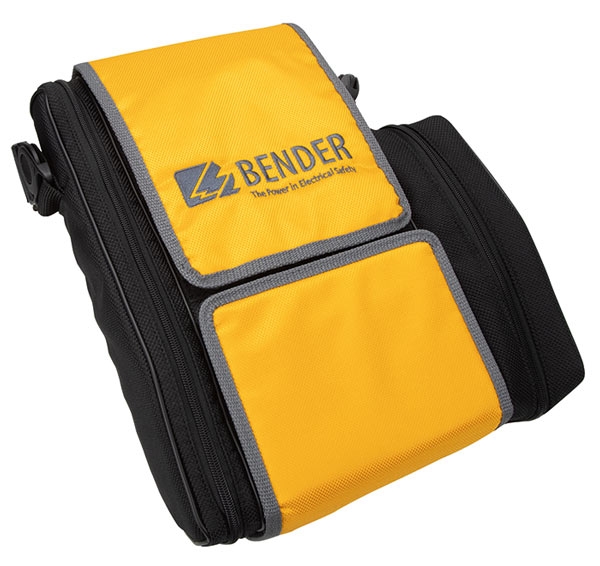

- Carrier bag of robust design, universal carrying concept
- Measuring lead with test probe and test terminal
- Null-modem cable
- Converter cable USB/RS-232
- Data management software UNIData 300
Services
- Calibration interval 36 months
- 36-month warranty
- Software updates for effective application in the future
- Training courses for operators in Grünberg/Germany
Applications
Standard-compliant tests in accordance with:
- IEC 62353:2007-05
- DIN EN 62353 (VDE 0751-1):2008-08
- ÖVE/ÖNORM EN 62353:2009-01
- DIN VDE 0701-0702:2008-06
- ÖVE E8701-1:03-01
The following tests can be performed
- Protective earth conductor resistance
- Insulation resistance
- PE current
- Equipment leakage current
- Touch current
Measurement methods of leakage currents
- Direct measurement method
- Differential measurement method
- Equipment leakage current -alternative measurement
Further measurements and tests
- Mains voltage
- Current consumption
- Visual inspection
- Functional test
UNIMET® 300ST Variant(s)
Country specific device
| Device | Art.-No. |
|---|---|
| UNIMET® 300ST (D/D) | B96023000 |
| UNIMET® 300ST (CH/CH) | B96023001 |
Optional Accessories for UNIMET® 300ST
| Device | Art.-No. |
|---|---|
| Barcode scanner-PS/2 | B96020082 |
| DS32A Three-phase adaptor for testing medical electrical three-phase devices in operating condition (acc. to DIN EN 62353, DIN VDE 0751-1, DIN VDE 0701-0702) | B96020098 |
| DS32 DCT Three-phase adaptor – passive Three-phase adaptor for testing from devices and cables not in operating condition | B96020100 |
