Insulation resistance - testing, measuring, monitoring

The insulation resistance is particularly important for the prevention of damage and injury, and for the reliability of electrical systems and equipment. On the one hand it is basis for the protection of individual and systems on the other hand it also serves as an important indicator for the condition of an electrical installation. Depending on the life cycle of a system or an item of equipment, the insulation resistance is to be tested, to be measured or also to be monitored.

Insulation monitoring is not the same as insulation measurement and vice versa. Depending on the related phase of the life cycle of a system or an item of equipment, these two techniques are to be used differently. However, overall it is important that a failure or a hazard for individuals and property is avoided by a preventive action.

The lifecycle

The (product) life cycle of an electrical system or an item of equipment can essentially be divided into the phases given in Table 1. Depending on the specific phase, (high) voltage testing, insulation measurement or insulation monitoring are required.

In unearthed power supplies, the monitoring can be undertaken using an insulation monitoring device. In earthed power supply systems the monitoring can be undertaken indirectly using fault current monitoring. By detecting impending insulation faults at an early stage, these devices are an important tool for the timely planning of maintenance tasks.

Conversely, the insulation measurement is only an instantaneous snapshot of the insulation resistance. In principle the insulation resistance is dependent on

  • The nature of the electrical installation or equipment
  • The operating conditions
  • The type of usage.

Here attention is to be paid to the safety risk and the protection goal.

Insulation measurement/monitoring in the life cycle of an electrical system/item of equipment

Phase of the lifecycle(High) voltage testInsulation measurementInsulation resistanceFault current
System not in operationSystem in operation
IT system IMDTN/TT system
RCDRCM
Planning/ Installation-- Include in planning/ install
CommissioningXXAdjust/ TestTestAdjust/ Test
Operation--SignalShut downSignal
MaintenanceX)*XSignalShut downSignal
RepairX)*XSignalShut downSignal
Major modificationX)*XCheck/ Include in planning
UpgradeX)*XCheck/ Include in planning
Decommissioning-----

X )* As far as required in the standards

(High) voltage test

To prevent the failure of the insulation, it is necessary to specify the insulation to suit the stresses to be expected.  The necessary insulation co-ordination depends on the stress on the air and creepage paths due to operating voltages, overvoltage and soiling due to dust and moisture.

To test the required insulation distances a high voltage test is undertaken on new equipment and systems; unlike the insulation measurement this test represents a dielectric strength test. This test is undertaken as part of a type test or routine test.

The test voltage is applied between the short-circuited main circuit (phase and neutral conductor) and the protective earth conductor. In some cases a further test is also to be undertaken between the main circuit and auxiliary circuit. The test voltage varies and is defined as a function of the standard and protection class; it can be between AC 1000 V and DC 6000 V.

During the test there must not be any flashover or breakdown. The test voltage must be twice the rated voltage or 1000 V (50/60 Hz). The test duration is approx. 1 s, and the requirements are met if breakdown does not occur.

Insulation measurement: Prior to commissioning

Prior to the initial commissioning of an electrical system, in accordance with DIN VDE 0100-600 (VDE 0100-600):2008-06 various measurements are to be undertaken. These include the measurement of the insulation resistance, which is measured between the active conductors and the protective earth conductor connected to earth. During this test the active conductors are allowed to be connected together electrically. The DC measuring voltage and the magnitude of the insulation resistance must comply with the requirements in Table 2.

The insulation resistance is considered adequate if each circuit reaches the required value without electrical loads connected. During the measurement it is to be ensured that all switches in the circuit are closed. If it is not possible to close circuits, the electrical circuits not measured must be measured separately. Any connections between N and PE must be open.

Table 2:

Insulation resistance and measuring voltage in accordance with DIN VDE 0100-600 (VDE 0100-600):2008-06

Nominal voltage of the electrical circuit (V)DC measuring voltage (V)Insulation resistance (MΩ)
SELV*, PELV**250≥0,5
Up to and including 500V, as well as FELV***500≥1,0
Over 500V1000≥1,0

*Safety extra-low voltage **Protected extra-low voltage ***Functional extra-low voltage

Insulation monitoring: In operation

Earthed power supplies (TN/TT systems)

In the case of earthed systems, the insulation resistance is determined indirectly via the magnitude of the fault current. A classic tool for this purpose is the residual current device (RCD), which shuts down the system or the loads if a certain fault current is exceeded and is this way prevents a hazard. In areas in which a shutdown could be a problem for operations, e.g. IT systems, often residual current monitors (RCM) are used.

These also operate based on the residual current principle that is the difference between the current flowing in and out is measured using a measuring current transformer and a signal provided or the system shut down at a specific fault current. Depending on the related fault current, AC, pulsed DC or AC/DC sensitive devices are used. For systems in which a large number of outgoing circuits need to be monitored, multiple channel systems are also available on the market, so-called RCMSs.

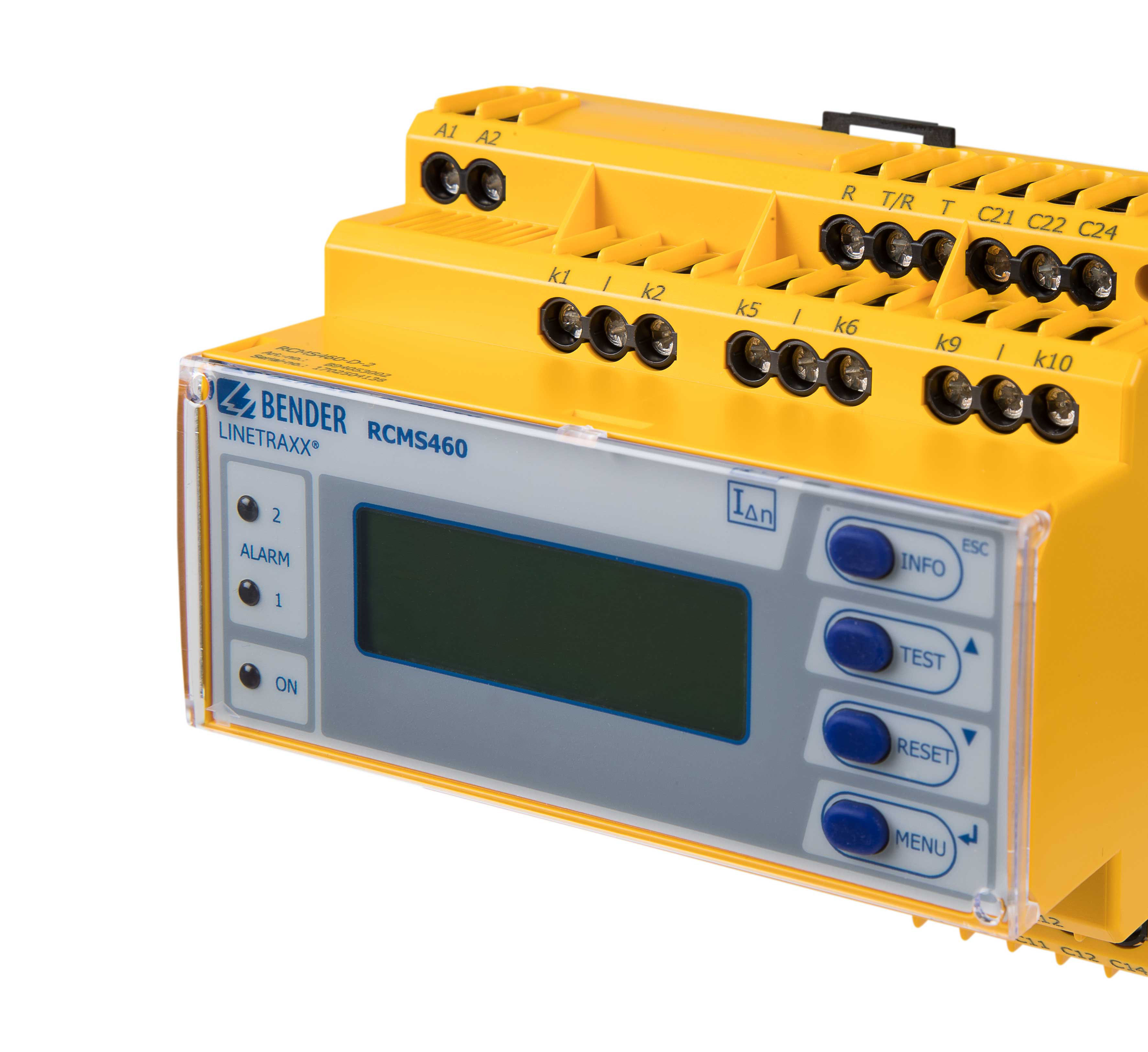

Multi-channel residual current monitoring system RCMS

Unearthed power supplies (IT systems)

Unlike TN/TT systems, in IT systems the active conductors are insulated from earth. In these systems the insulation resistance between the active conductors and earth is continuously monitored with the aid of an insulation monitoring device (IMD).

If the value measured is below a specific resistance (kΩ ) an alarm is output. Here a key advantage of the IT system becomes clear. In accordance with DIN VDE 0100-410 (VDE 0100-410):2007-06 shut down is not necessary on the occurrence of a first fault such that operation can continue uninterrupted. This aspect is of crucial importance in safety-related areas, e.g. in hospitals, industrial plants or electric mobility.

As the IT system supplied is in operation, the insulation monitoring device measures the total insulation resistance of the system, including all loads switched on that are electrically connected to the IT system.

Insulation monitoring device ISOMETER® iso685

More details on the operating principle of an insulation monitoring device can be found in the download version or here.

Insulation monitoring device response value

The response value required for insulation monitoring devices is given in various installation requirements. In practice a value of 100 Ω/V for the main alarm and 300 Ω/V for insulation monitoring devices with a pre-warning stage have been proven appropriate.

Alternatively the response value can be set to a value that is 50 % higher than the value required in the standards. A list of the required values can be found in the download version of this article.

It is also possible to adjust the response value to suit the requirements of DIN VDE 0105-100 (VDE 0105-100):2009-10 (see Table 3). Here it is the responsibility of the planner or the installer of the system to draw on appropriate experience.

Insulation monitoring: For disconnected loads

In some areas there are loads that are disconnected for a time, e.g. fire extinguishing pumps, valve drives, lift motors or emergency generators. While they are switched off, moisture or other effects can cause insulation faults in the supply cable or in the load itself and these faults go unnoticed. In these cases offline monitors are used. More information about offline monitoring can be found here.

Insulation measurement: During periodic tests on electrical systems

During periodic tests the measurement of the insulation resistance is part of the measurements to be undertaken in accordance with DIN VDE 0105-100 (VDE 0105-100):2009-10.

The insulation resistance is subject to a certain degree of ageing however, moisture etc. also has a significant effect such that lower values are required than on new systems. (Table 3). The method of measurement is identical to the initial measurement.

Table 3:

Insulation resistances required during tests in accordance with DIN VDE 0105-100 (VDE 0105-100):2009-10
Measuring voltageWithout equipment connectedWith equipment connected and switched onSystems outdoors or in areas in which the floors, walls and installations are sprayed for cleaningIT systemsSELV / PELV
Equipment connectedWithout equipment connected
typ. DC 500V, max. 1mADC 250V
Insulation resistance1000Ω/V300Ω/V150Ω/V500Ω/V50Ω/V0,25MΩ

Insulation measurement: During periodic tests on electrical equipment and medical electrical equipment

Electrical equipment must be checked at regular intervals to ensure it is in correct working order. The test for electrical equipment is described in DIN VDE 0701-0702 (VDE 0701-0702):2008-06, while medical electrical equipment is to be tested in accordance with DIN EN 62353 (VDE 0751-1):2008-08.

The insulation measurement forms part of the test in these standards. The insulation resistance is to be measured between the active parts and the related conductive part that can be physically touched, with the device switched on; the limits are to be met. The limits can be found in the download version of this article.

In the case of medical electrical devices there is also the requirement that the power supply unit switch should be switched on. The measuring voltage is defined as DC 500 V.

The measurement is made between

As DIN EN 62353 (VDE 0751-1):2008-08 does not contain any limit, the limits in the previous standard VDE 0751-1 are used:

Further information, details and content can be found in the download version of this article.
