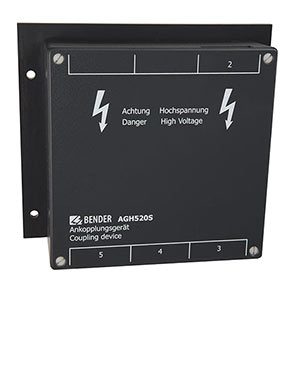

AGH520S

AGH520S

  • Increase of the ISOMETER® nominal voltage range
  • Used with ISOMETER® of the iso685 series
  • For medium-voltage applications up to AC 7.2 kV

The coupling device AGH520S is designed to extend the nominal voltage range of the ISOMETER® iso685 series to (3)AC 0…7200 V, 50…400 Hz. The coupling device is connected to the system to be monitored by one pole and connected to the terminal AK of the ISOMETER® by means of the terminal 5.

AGH520S Variant(s)

TypeNominal system voltage UnArt. No.
AGH520S3(N)AC 0…7200 VB913033

Downloads for AGH520S

CategoryNameSizeLanguageTimestampD-/B-Number
CE Declarations of conformity AGH 145.4 KB 2022/08/12 06:17:2512.08.2022 06:17:25
Manuals AGH520S 1.6 MB DE2022/12/14 10:30:4014.12.2022 10:30:40D00073
Manuals AGH520S 1.6 MB EN2022/12/14 10:30:4014.12.2022 10:30:40D00073
Manuals AGH520S 104.7 KB FR2019/05/13 10:31:5413.05.2019 10:31:54D00073
Datasheets AGH520S 178.3 KB ZH2019/05/13 10:31:3213.05.2019 10:31:32D00073
Datasheets AGH520S 336.2 KB DE2022/07/21 12:31:5221.07.2022 12:31:52D00073
Datasheets AGH520S 333.6 KB EN2022/07/21 12:32:0721.07.2022 12:32:07D00073
Datasheets AGH520S 336.5 KB ES2022/07/21 12:32:1821.07.2022 12:32:18D00073
