RDC104-4

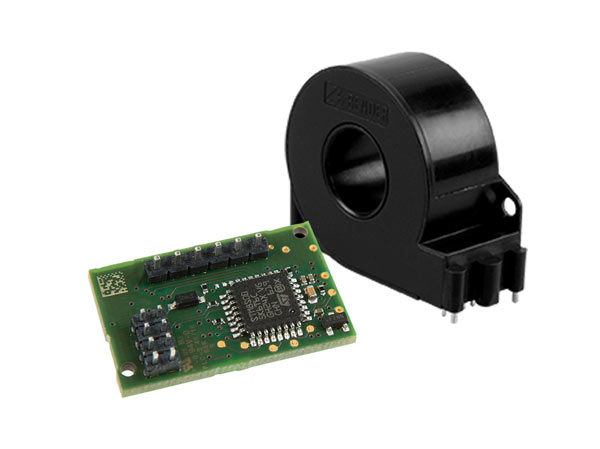

The residual current monitoring module RDC104-4, with patented measurement method, is used in combination with a measuring current transformer CTBC17 and a type A RCD which has to be provided in the installation for DC fault current monitoring of AC charging systems for electric vehicles in which AC or DC fault currents can occur. The rated voltage Un is 250 V and the rated current (charging current) In = 1 x 48 A/3 x 32 A. The RDC104-4 is suitable for integration into a charging unit Mode 3 (AC) as a RDC-M module according to IEC 62955.

The RDC104-4 is only intended for purchase by the manufacturer of the charging system and not for end users!

More information:

Questions? Contact us!

RDC104-4
RDC104-4

The residual current monitoring module RDC104-4, with patented measurement method, is used in combination with a measuring current transformer CTBC17 and a type A RCD which has to be provided in the installation for DC fault current monitoring of AC charging systems for electric vehicles in which AC or DC fault currents can occur. The rated voltage Un is 250 V and the rated current (charging current) In = 1 x 48 A/3 x 32 A. The RDC104-4 is suitable for integration into a charging unit Mode 3 (AC) as a RDC-M module according to IEC 62955.

The RDC104-4 is only intended for purchase by the manufacturer of the charging system and not for end users!

More information:

Questions? Contact us!

Features

  • Four outputs (Switch1, Switch2, Error, PWM)
  • Patented measurement method (Patents: EP 2 571 128 / US 9,397,494 / ZL 201210157968.6 / CN 103001175, EP 2 813 856)
  • Measuring range ±300 mA
  • Residual current resolution < 0.2 mA
  • Rated current up to 32 A (singlephase) or 3 x 32 A RMS (three-phase)
  • Fault output (integrated self monitoring and test functions)
  • High insensitivity to external interferences
  • Available variants for application according to IEC 62955
  • Wide range of use even in severe environments (e.g. in the event of external fields)
  • In applications according to IEC 62955, the device can replace a type B RCD when combined with a type A RCD and a suitable switching device (e.g. a power relay)

Applications

  • DC fault current monitoring of AC charging systems for electric vehicles

RDC104-4 Variant(s)

TypeDescriptionArt. No.
RDC104-4RDC-M module acc. to IEC 62955B94042483
CTBC17Measuring current transformer Ø = 17 mmB98080070
CTBC17-Cable180MMConnection cable 180 ± 30 mmB98080540
CTBC17-Cable325MMConnection cable 325 ± 25 mmB98080541
CTBC17-Cable600MMConnection cable 600 ± 30 mmB98080543
CTBC17-Cable1470MMConnection cable 1470 ± 30 mmB98080542

Downloads for RDC104-4

NameCategorySizeLanguageTimestampD-/B-Number
The IEC 62955 standard at a glance Flyer 325.9 KB EN2023/11/2929.11.2023
We are your eMobility partner! Flyer 262.3 KB 2023/11/2929.11.2023
RoHS/REACH Report - B94042483 RoHS/REACH Report 252.2 KB 2024/09/0606.09.2024
RDC104-4 Beiblatt Manuals 76.4 KB DE2023/02/0202.02.2023D00402
RDC104-4 Supplementary sheet Manuals 76.4 KB EN2023/02/0202.02.2023D00402
RDC104-4 Manuals 2.0 MB DE2023/08/1717.08.2023D00402
RDC104-4 Manuals 2.0 MB EN2023/08/1717.08.2023D00402
RDC104-4 Datasheets 550.4 KB DE2023/08/2424.08.2023D00402
RDC104-4 Datasheets 546.4 KB EN2023/08/2424.08.2023D00402
Stellungnahme Prüfung 6mA DC Fehlerstrom Technical information 450.2 KB DE2022/06/0707.06.2022
