Making ports electrically safe

Gantry cranes

Safely lifting loads and controlling cranes

Gantry cranes

Bender works in close cooperation with the manufacturers of gantry crane systems to optimise protection against electrical faults and guarantee the safety of the operating personnel. Insulation monitoring or residual current monitoring ensure high levels of safety and availability.

Product overview ISOMETER®
Product overview Residual current monitoring
Technical paper Electrical safety in control and auxiliary circuits

Recommended systems for insulation monitoring:

Recommended systems for residual current monitoring:

Recommended measuring current transformers:

EN 61557-8
Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 8: Insulation monitoring devices for IT Systems

EN 61557-9
Electrical safety in low voltage distribution systems up to 1000 V a.c. and 1500 V d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 9: Equipment for insulation fault location in IT Systems

EN 61557-15
Electrical safety in low voltage distribution systems up to 1000 V ac and 1500 V dc - Equipment for testing, measuring or monitoring of protective measures - Part 15: Functional safety requirements for insulation monitoring devices in IT systems and equipment for insulation fault location in IT systems

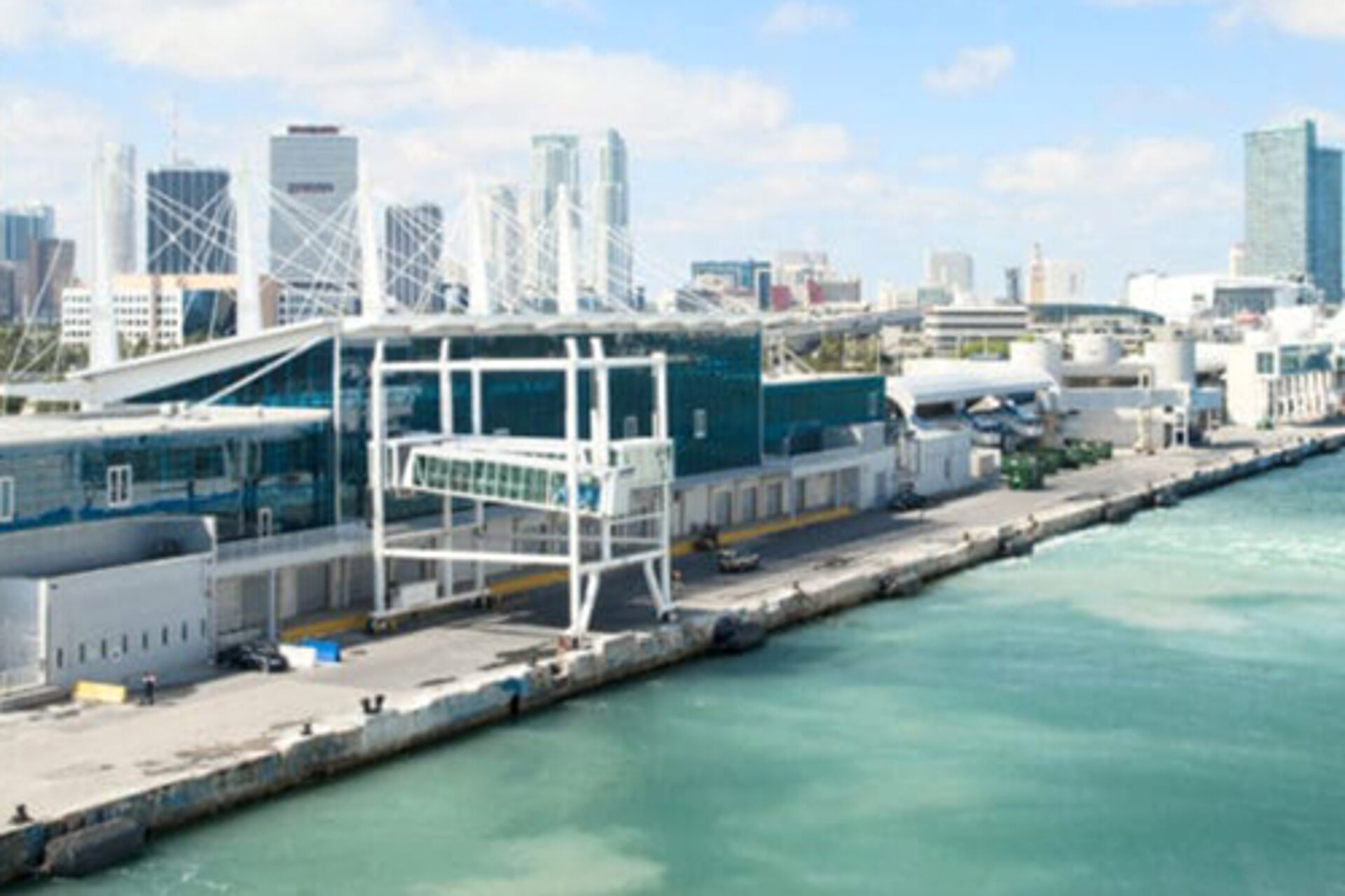

Terminals

A high level of fire and personnel protection at the terminal

Terminals

By means of insulation monitoring or residual current monitoring, Bender ensures the highest possible level of safety for people and systems and therefore guarantees a high level of system availability during embarking and disembarking or rather loading and unloading.

Product overview ISOMETER®
Product overview Residual current monitoring
Technical paper Electrical safety in control and auxiliary circuits

Recommended systems for insulation monitoring:

Recommended systems for residual current monitoring:

Recommended measuring current transformers:

Recommended for resistance grounded systems:

EN 61557-8
Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 8: Insulation monitoring devices for IT Systems

EN 61557-9
Electrical safety in low voltage distribution systems up to 1000 V a.c. and 1500 V d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 9: Equipment for insulation fault location in IT Systems

EN 61557-15
Electrical safety in low voltage distribution systems up to 1000 V ac and 1500 V dc - Equipment for testing, measuring or monitoring of protective measures - Part 15: Functional safety requirements for insulation monitoring devices in IT systems and equipment for insulation fault location in IT systems

Marinas, yacht harbours

Preventing damage due to fault currents

Marinas, yacht harbours

Moorings are often problematic in marinas. A central power supply feeds a large number of moorings, but there is no residual current monitoring for the individual moorings. This can lead to undetected fault currents being conducted from one boat through the water and damaging other boats in the process. Central shutdown via an RCD (fault current circuit breaker) means all moorings are de-energised, even if there is an electrical fault on one mooring only.

Brochure Ground fault protection for marinas and shore power
Product overview Residual current monitoring

Recommended systems for residual current monitoring:

Recommended products for onshore power supply:

DIN IEC/TS 61439-7
Low-voltage switchgear and controlgear assemblies - Part 7: Assemblies for specific applications such as marinas, camping sites, market squares, electric vehicles charging stations
