  • Current, voltage, frequency, power, harmonics, and much more
  • Modbus communication (RTU)
  • Accuracy 0.5 S

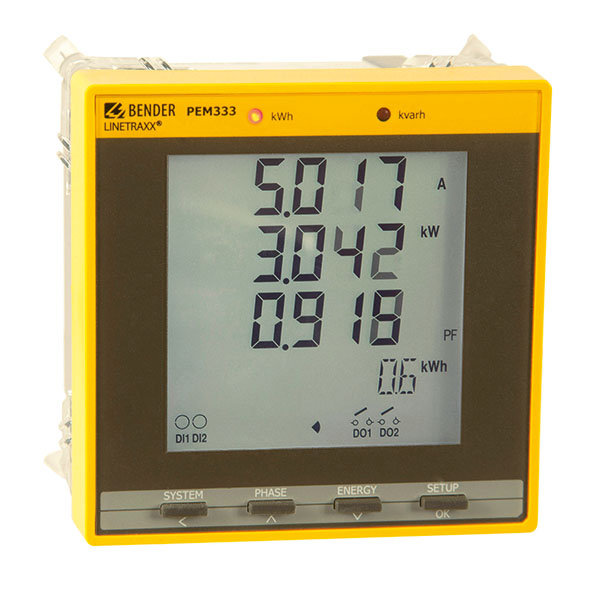

The universal measuring device PEM330/333 is used to record and indicate electrical quantities of a public electricity network. The scope of measurements ranges from currents and voltages through energy consumption and performance to total harmonic distortion and voltage quality assessment. The active energy measurements are in compliance with the DIN EN 62053-22 class 0.5 S accuracy standard.The current inputs are connected via external …/1 A or …/5 A measuring current transformers.

  • Features
  • Applications
  • Accessories
  • Ordering information
  • Downloads
  • Accuracy class according to IEC 62053-22: 0.5 S
  • Measured quantities
    – Phase voltages UL1, UL2, UL3 in V
    – Line voltages UL1L2, UL2L3, UL3L1 in V
    – Phase currents I1, I2, I3 in A
    – Neutral current (calculated) I4 in A
    – Frequency f in Hz
    – Phase angle for U and I in °
    – Power per phase conductor S in kVA, P in kW, Q in kvar
    – Total power S in kVA, P in kW, Q in kvar
    – Displacement factor cos (φ)
    – Power factor λ
    – Active and reactive energy import in kWh, kvarh
    – Active and reactive energy export in kWh, kvarh
    – Voltage unbalance in %
    – Current unbalance in %
    – Harmonic distortion (THD) for U and I
    – k-factor for I
  • Demands of energy and current for particular time frames
  • Peak demands with timestamps

  • Version PEM333
  • Programmable setpoint monitoring
  • 2 digital outputs

  • Version PEM333-P
  • Modbus RTU communication via RS-485
  • 2 pulse outputs (kWh/kvarh)
  • As a compact device for front panel mounting, the PEM330/333 is a replacement for analogue indicating instruments
  • Typical application in low and medium-voltage networks (via measuring voltage transformer)
  • Power quality monitoring
  • Collection of relevant data for energy management systems
  • Energy consumption allocation to cost accounting centers


Variants of LINETRAXX® PEM333

PEM333, 2DI, 2DO, RS-485 interface
TypeCurrent inputArt. No
PEM3335 AB93100333
PEM333-2511 AB93100334

PEM333-P, 2 pulse outputs, RS-485 interface

TypeCurrent inputArt. No
PEM333-255P5 AB93100335
PEM333-251P1 AB93100336
