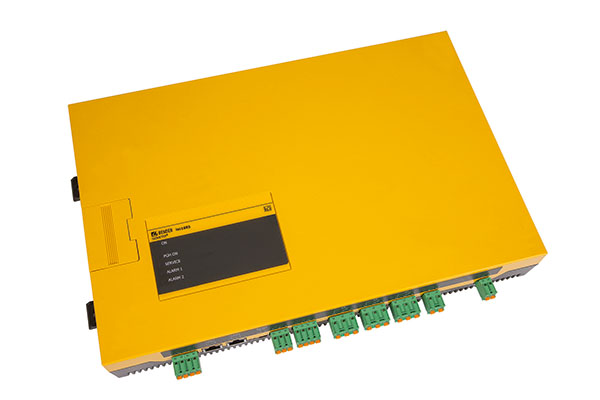

ISOMETER® iso1685P
- Insulation monitoring device for AC 1000 V and DC 1500 V IT systems
- Application main circuits with connected frequency converters
- Separately adjustable response values 200 Ω…1 MΩ
- Display and control function for EDS insulation fault location systems
- Can be extended to operate as an insulation fault location system
The iso1685P is used for insulation monitoring of extensive systems
up to AC 1000 V/DC 1500 V which are designed as IT systems. The device
uses a specially developed measurement method for monitoring the
insulation resistance also in extensive installations where extremely
high leakage capacitances against earth exist due to interference
suppression methods. Adaptation to systems containing high leakage
capacitances occurs automatically.
The device generates locating current pulses required for insulation
fault location. That allows the localisation of the insulation fault
using permanently installed or mobile insulation fault locators.
- Features
- Applications
- Accessories
- Ordering information
- Downloads
- Insulation monitoring in extensive unearthed power supply systems up to AC 1000 V/DC 1500 V
- Measurement of low-resistance insulation faults
- Separately adjustable response values Ran1 (Alarm 1) and Ran2 (Alarm 2) (both 200 Ω…1 MΩ) for prewarning and alarm
- Automatic adaptation to high system leakage capacitances up to 2000 μF, selectable range
- Integrated locating current injector up to 50 mA
- Device self test with automatic fault message in the event of a fault
- Alarm relays separately adjustable for insulation fault 1, insulation fault 2 and device error
- RS-485 interface (BMS bus), e.g. to control insulation fault location
- μSD card with data logger and history memory for alarms
- Extensive systems up to AC 1000 V/DC 1500 V which are designed as IT systems
Variants of ISOMETER® iso1685P
Type | Response value range | Nominal system voltage | Supply voltage* | Art. No. |
---|---|---|---|---|
iso1685P-425 | 200 Ω…1 MΩ | AC 0…1000 V DC 0…1500 V | DC 18…30 V | B91065801 |
iso1685P-425W | 200 Ω…1 MΩ | AC 0…1000 V DC 0…1500 V | DC 18…30 V | B91065801W |
* Absolute values
