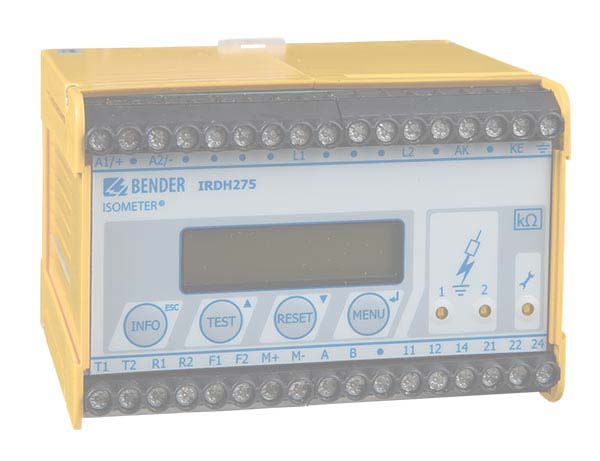

ISOMETER® IRDH275

ISOMETER® IRDH275

- This device series is in the discontinuation phase. -
Deliverable according to availability until 31.12.2023.

Your personal contact will be happy to assist you.

Features

  • Insulation monitoring for unearthed AC, AC/DC systems 0…793 V, DC 0…650 V
  • Nominal voltage extendable via coupling device
  • Two separately adjustable response values1 kΩ…10 MΩ
  • AMPPlus measurement method
  • Automatic adaptation to the system leakage capacitance
  • Info button to display device settings and system leakage capacitance
  • Self monitoring with automatic alarm
  • Automatic self test, selectable
  • Connection for external kΩ indication
  • Test and reset button
  • Connection external test/reset button
  • Two separate alarm relays with two voltage-free changeover contacts
  • N/O or N/C operation
  • Backlit LC display
  • RS-485 interface

Applications

  • AC, DC or AC/DC main circuits
  • AC/DC main circuits with directly connected DC components, such as rectifiers, converters, and thyristor-controlled DC drives
  • UPS systems, battery systems
  • Heaters with phase control
  • Installations including switch-mode power supplies
  • IT systems including high leakage capacitances
  • Coupled IT systems

ISOMETER® IRDH275 Variant(s)

TypeNominal voltage UnSupply voltage USArt. No.
IRDH275-435AC 0…793 V / DC 0…650 V*AC 88…264 / DC 77…286 V*B91065100
IRDH275-427AC 0…793 V / DC 0…650 V*AC 19.2…55 V / DC 19.2…72 VB91065104
IRDH275-425AC 0…793 V / DC 0…650 V*DC 10.2…36 VB91065108
IRDH275B-435AC 0…793 V / DC 0…650 V*AC 88…264 / DC 77…286 V*B91065101
IRDH275B-427AC 0…793 V / DC 0…650 V*AC 19.2…55 V / DC 19.2…72 VB91065105
IRDH275B-425AC 0…793 V / DC 0…650 V*DC 10.2…36 VB91065109

* Absolute values

Optional Accessories for ISOMETER® IRDH275

External kΩ measuring instrument 400 µA

TypeArt. No.
7204-1421B986763
9604-1421B986764


External kΩ measuring instrument 20 mA

TypeArt. No.
9620-1421B986841


Coupling devices

TypeNominal system voltage UnArt. No.
AGH150W-4DC 0…1760 VB98018006
AGH204S-4AC 0…1650 (1300) VB914013
AGH520SAC 0…7200 VB913033

Downloads for ISOMETER® IRDH275

CategoryNameSizeLanguageTimestampD-/B-Number
CE Declarations of conformity AGH 145.4 KB 2022/08/12 06:17:2512.08.2022 06:17:25
CE Declarations of conformity IRDH275 - 375 - 575 95.8 KB 2022/08/12 06:17:2512.08.2022 06:17:25
Manuals IRDH275/IRDH275B 1.4 MB DE2019/05/13 10:31:4113.05.2019 10:31:41D00176
Manuals IRDH275/IRDH275B 1.4 MB EN2019/05/13 10:31:4913.05.2019 10:31:49D00176
Manuals IRDH275/IRDH275B 601.5 KB ES2019/05/13 10:31:5413.05.2019 10:31:54D00176
Manuals IRDH275/IRDH275B 1.4 MB FR2019/05/13 10:31:5413.05.2019 10:31:54D00176
Datasheets IRDH275 422.5 KB DE2022/06/14 09:08:0014.06.2022 09:08:00D00122
Datasheets IRDH275 396.8 KB EN2022/06/14 09:08:2914.06.2022 09:08:29D00122
